Description

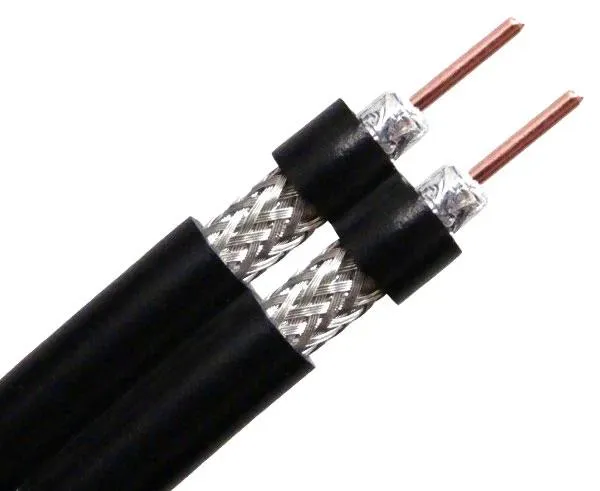

Dual RG6 Riser CMR Rated Coaxial Cable, Dual Shielded and 18 AWG CCS for CATV & Digital Satellite
Due to its superior shielding for signal retention, RG6 Coaxial Cable is the preferred choice for satellite, digital CATV, and HDTV television networking. Its thicker conductor and denser jacketing compared to RG59 enable twice the data transfer speed. We offer RG6 dual shield and quad shield cable options to optimize signal retention for sharper, clearer digital images. The RG6 Coaxial Cable operates at an impedance of 75 ohms and has been sweep-tested up to 3GHz.
This cable is compatible with our and Connectors.
Applications
Coaxial Cable is used to transmit radio frequency energy. The advantage of coaxial is that the electromagnetic field carrying the signal occurs only in the space between the inner and outer conductors. With that said, it allows the cable to be installed next to metal objects without power loss. Coaxial Cable also offers protection for the signal from external electromagnetic interference. Coaxial Cables connects radio transmitters and receivers to their antennas, computer network (Internet) connections, digital audio (S/PDIF), and distributing cable television signals. This makes RG6 cable an ideal solution for coax cable for internet usage.
Product Quality
Our high-quality Dual RG6 riser CMR Coaxial Cable consists of an 18 AWG solid copper clad steel (CCS) inner conductor that transmits the signal. It is wrapped in dielectric polyethylene insulation. This RG6 dual-shielded Riser CMR coaxial cable comes with 100% bonded aluminum foil and a 60% aluminum braided shield. This is covered with a flame-rated PVC jacket. This double coax cable is ideal for TV antenna, cable TV, and satellite installations, allowing you to make two cable runs at once. Our cables are UL-listed and RoHS Compliant. This high-grade shielded RG6 coaxial cable is well-suited for vertical CATV installations.
Where to use Coaxial Cable
A broad range of applications exist for coaxial cabling. It is widely used with home entertainment equipment such as Cable Television (CATV), Digital HDTV, Audio / Video, and Digital Satellite. It is also used with security cameras and GPS Systems.
RG6 Coaxial Cable Options |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
CCTV |
CATV |
||||||||
| Single Conductor | Siamese | Single Conductor | Siamese | Single Conductor | Single Conductor | Single Conductor | Single Conductor | Single Conductor Messenger |
Single Conductor |
Features
Features
- Dual Riser CMR
- Cable Television (CATV) and Audio/Video Applications
- Suitable for Satellite, HDTV, Outdoor TV Antenna Distribution
- 100% AL Foil 60% AL Wire Braid Shielding
- 2x 18 AWG Copper Clad Steel Center Conductors
- Heavy Duty Shielding and Superior Performance
- Greater Pull Strength
- UV Resistant Jacket
- Sweep Tested to 3.0 GHz
- 75 Ohm
- CMR Rated for Vertical Applications
- Supplied on a Wooden Spool in 500ft Lengths
Specifications
Specifications
Physical Characteristics |
|
|---|---|
| Conductor Size | 18 AWG |
| Conductor Material | Solid Copper Clad Steel (CCS) |
| Dielectric Material | Foam PE |
| Shielding | 60% AL Braiding 100% AL Foil Bonded |
| Outer Jacket Material | FRPVC & UV Resistant |
Electrical Characteristics |
|
|---|---|
| Nominal Impedance | 75 Ohm |
| Nominal Velocity of Propagation | 83% |
| Nominal Capacitance | 16.2 Pf/ft |
| Nominal Conductor DC Resistance DCR @ 20°C | 102 Ohms/km |
| Maximum Operating Voltage-UL | 350 VRMS |
Mechanical Characteristics |
|
|---|---|
| Storage Temperature Range | N/A |
| Installation Temperature Range | N/A |
| Operating Temperature Range | -20°C to 60°C |
| Maximum Recommended Pulling Tension | 110lbs. |
| Minimum Bend Radius/Minor Axis | 3" |
Additional Information
Additional Information
To learn more about our RG6 Bulk Coaxial Cable here is a link to a page containing more information on our premium .
What's in the Box
What's in the Box
- Qty - (1) Dual RG6 Riser CMR Coaxial Cable, Dual Shielded, 18 AWG CCS, 60% AL Braid, 500ft in Reel in box, Black
