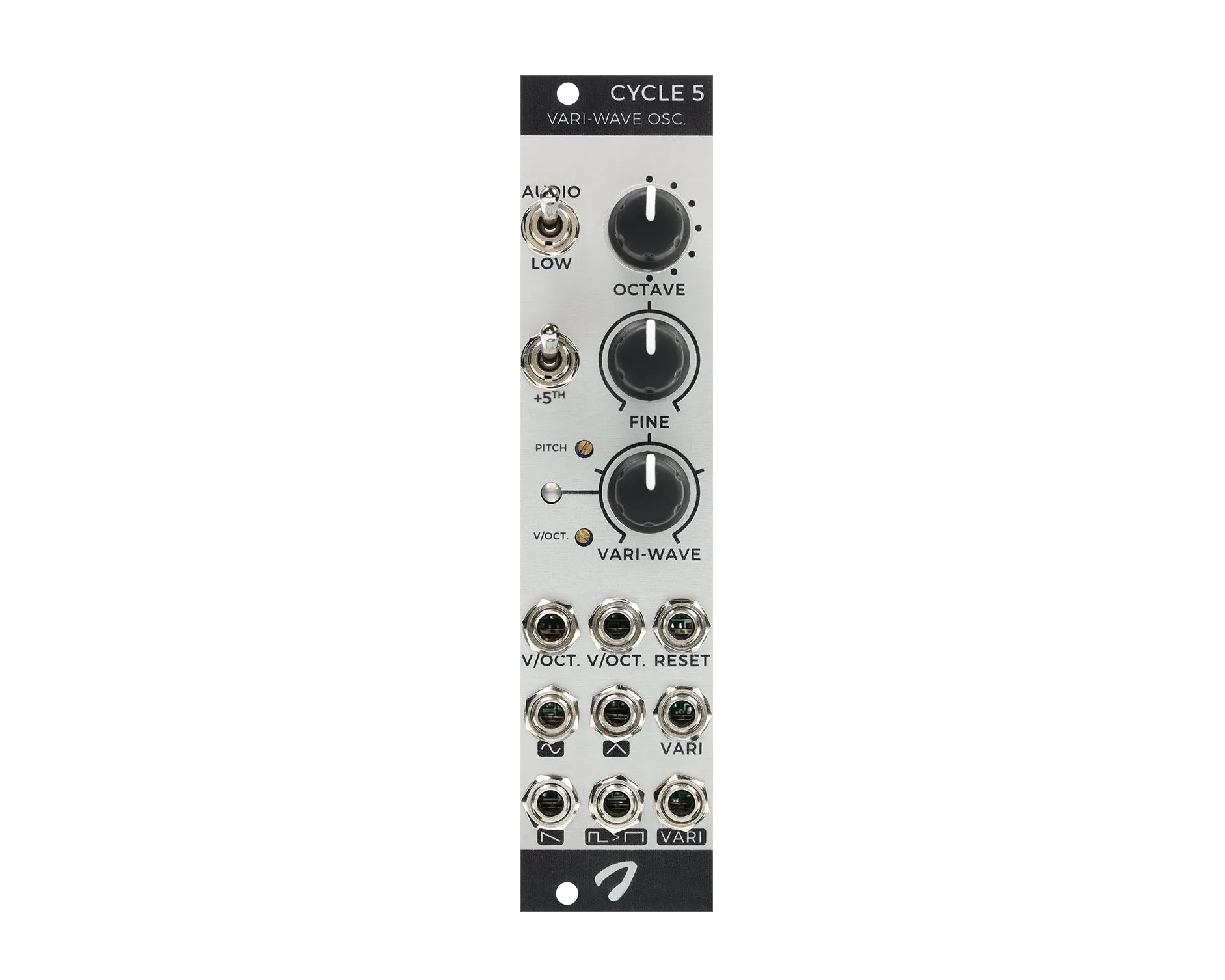

The Joranalogue Cycle 5 is a small oscillator that packs a punch At its heart lies a refined high-stability triangle core voltage controlled oscillator (VCO), with performance matching or exceeding that of much bigger and costlier oscillator modules.
By adjusting the vari-wave knob, the waveform on the matching output will smoothly morph from sine, to triangle, saw, square and finally a very narrow pulse. The vari-wave parameter can be CV controlled, up to audio frequencies for some intense timbres.

Equally at home as a modest modulation companion to big VCOs, as being in the spotlight in miniature or polyphonic systems, Cycle 5 might just be the most multi-talented tiny analogue oscillator yet.

Features

• High-stability precision analogue triangle-core VC(LF)O.
• Octave and perfect fifth switches—all intermediate frequencies can be reached using the front panel controls.
• Dual volt per octave FM inputs.
• Outputs: sine, triangle, saw, square/pulse (PWM) and vari-wave, smoothly morphing between all waveforms.
• Reset (hard oscillator sync) input.
• Wide frequency range: 48 mHz (20 seconds) to 3.7 kHz.
• Don't waste time tuning: pre-tuned for 0 V = C.
• Impedance-compensated outputs with dual-colour vari-wave LED.
• Trim potentiometers accessible from the front panel.
• Precision-milled 2 mm anodised aluminium front panel with high-resolution, non-erasable graphics.
• Bullet-proof design: polarised power header and MOSFET protection circuit.
• Includes 16-to-10-pin Eurorack power ribbon cable.
• Premium mounting hardware: black screws, black nylon washers and matching hex key.
• High-quality components and assembly; designed and made in Belgium.

Video:

Product Specs

• Item Number: 32809
• Make:
• Model:
• Condition:
• Finish: Silver
• Categories: ⇒
• Function:
• Made In: Belgium
• MPN: JORC5
• Modular Grid: Eurorack
• Dimensions: 6 HP 40 mm deep
• Power: 75 mA 12V 70 mA -12V 0 mA 5V
