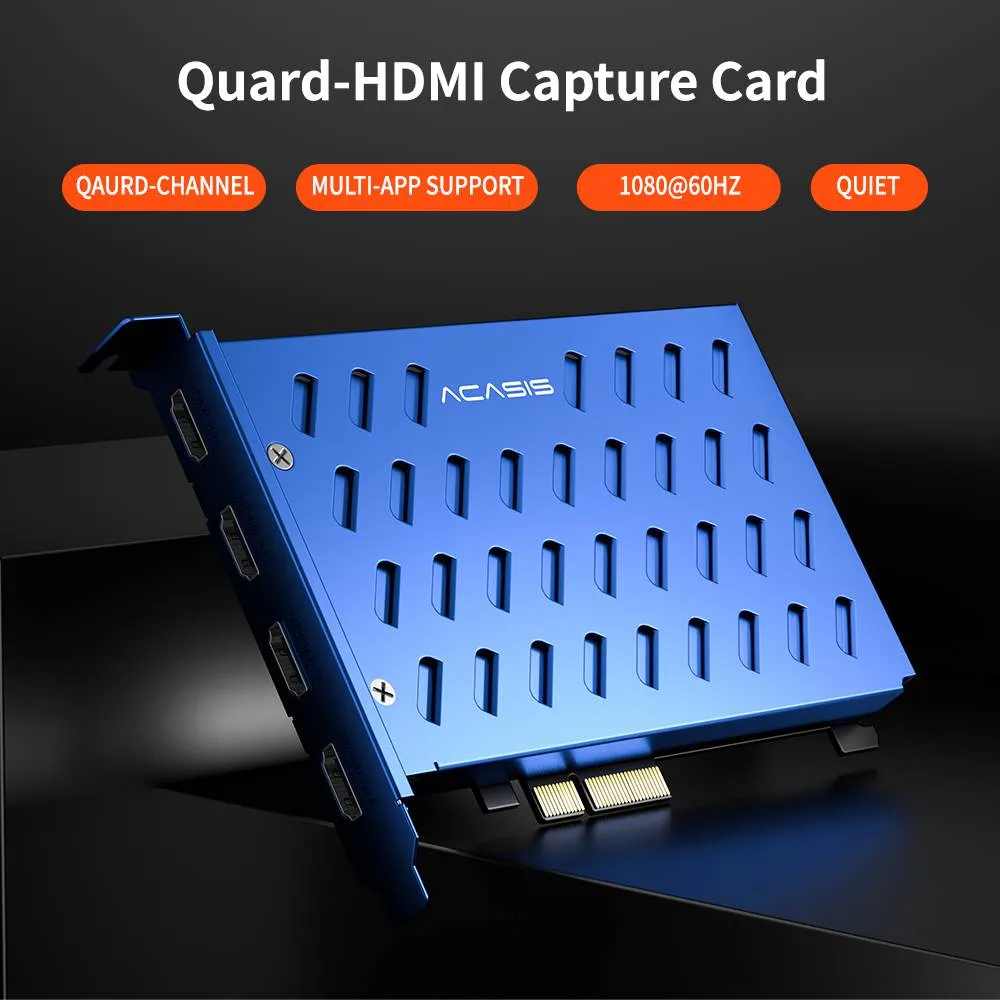

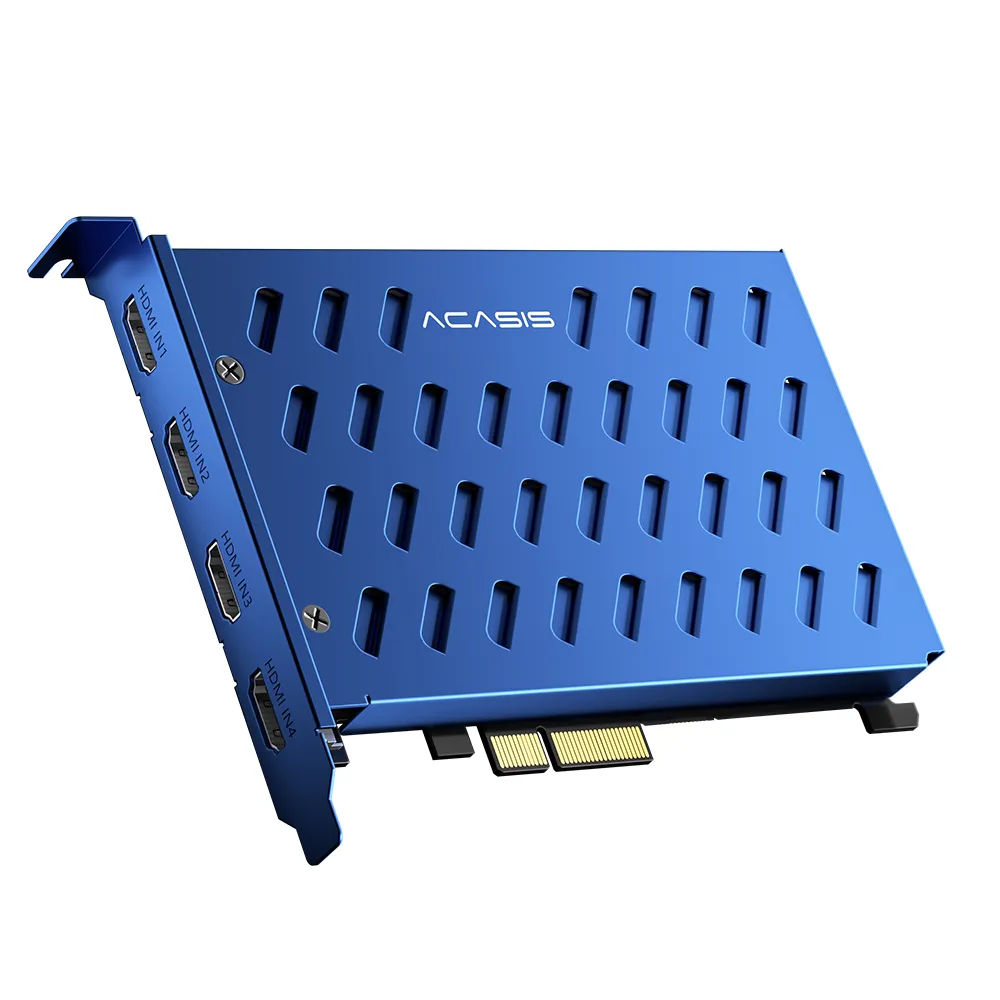

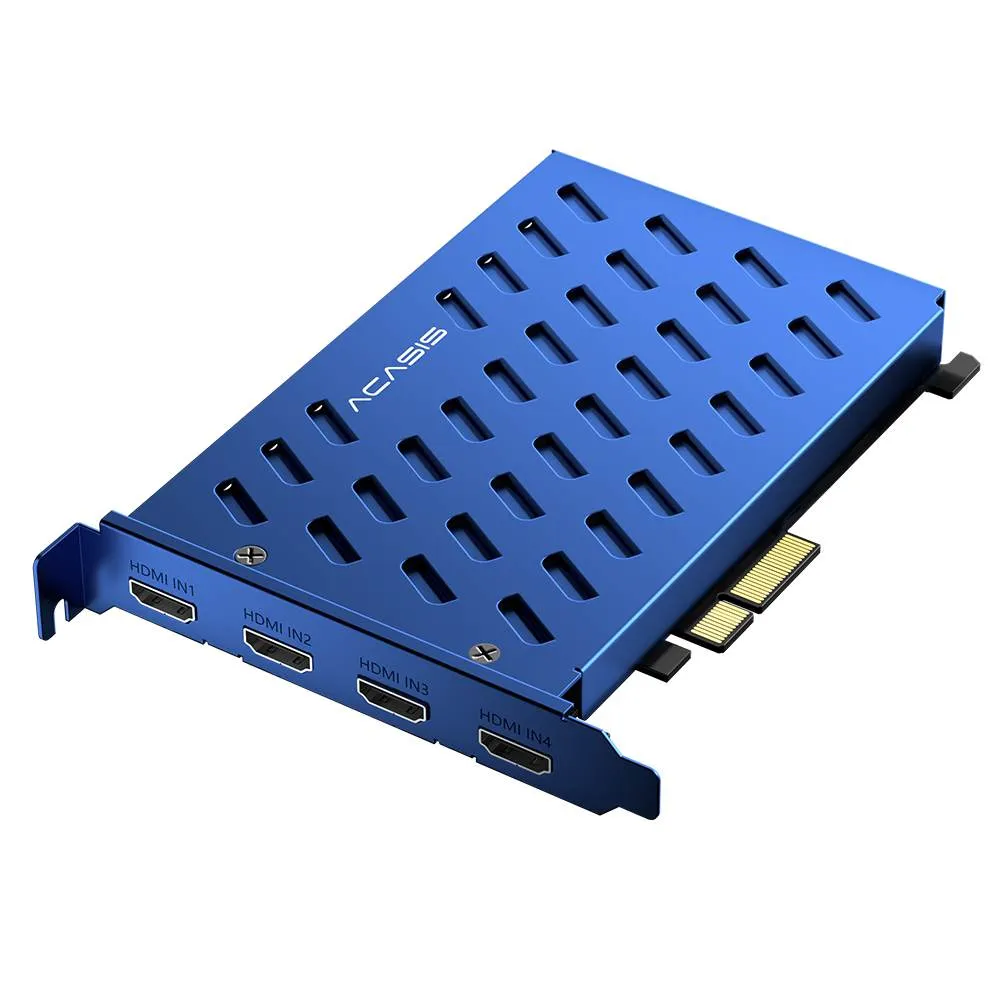

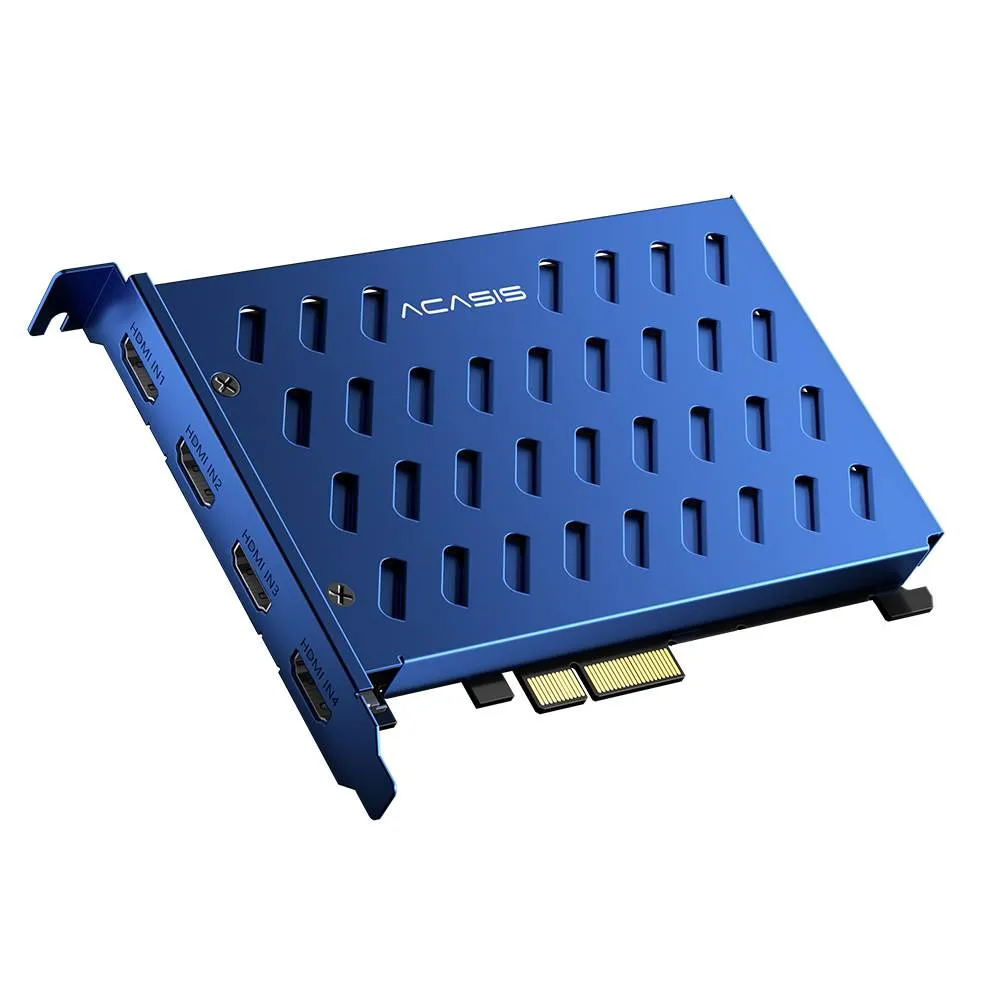

Name: Acasis 4 HDMI PCIe Video Capture Card 1080P 60FPS with Built-in Fan
SKU: 397101

Product Details ＋

ACASIS 1080P60Hz 4-HDMI PCle video capture card supports 4 HDMI ports at the same time acquisition, long-term work transmission is stable and clear, fully compatible with mainstream applications, effective de-intercalation picture more detailed.

1. Direct Sound compatible audio acquisition, PCM 48K stereo
2. Video processing is done by the acquisition card and does not occupy the host CPU

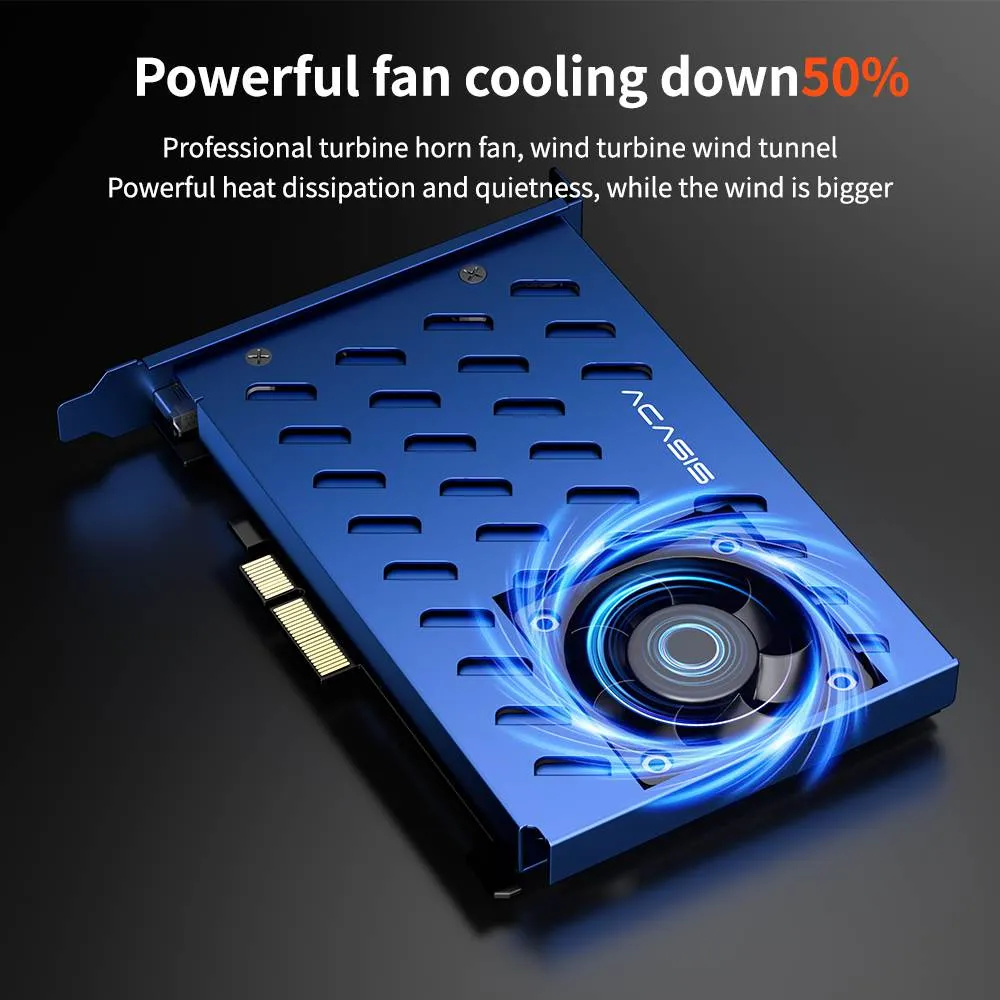

3. Professional turbine horn fan, wind turbine duct, powerful quiet heat dissipation
4. The system automatically determines the video format and prompts you to enter the video format

The PCI-E X4 Gen 2 interface in this capture card enables 20Gbps transmission and ultra-low latency, ensuring a smooth, responsive live streaming experience for content creators.

AC-4SDI Plus is able to display live feeds from up to 4 1080P60Hz cameras simultaneously, allowing users to seamlessly switch between them to create a dynamic streaming experience. The 1080p60Hz HD video capture ensures smooth and detailed visuals, catering to the needs of professional content creators and streamers.

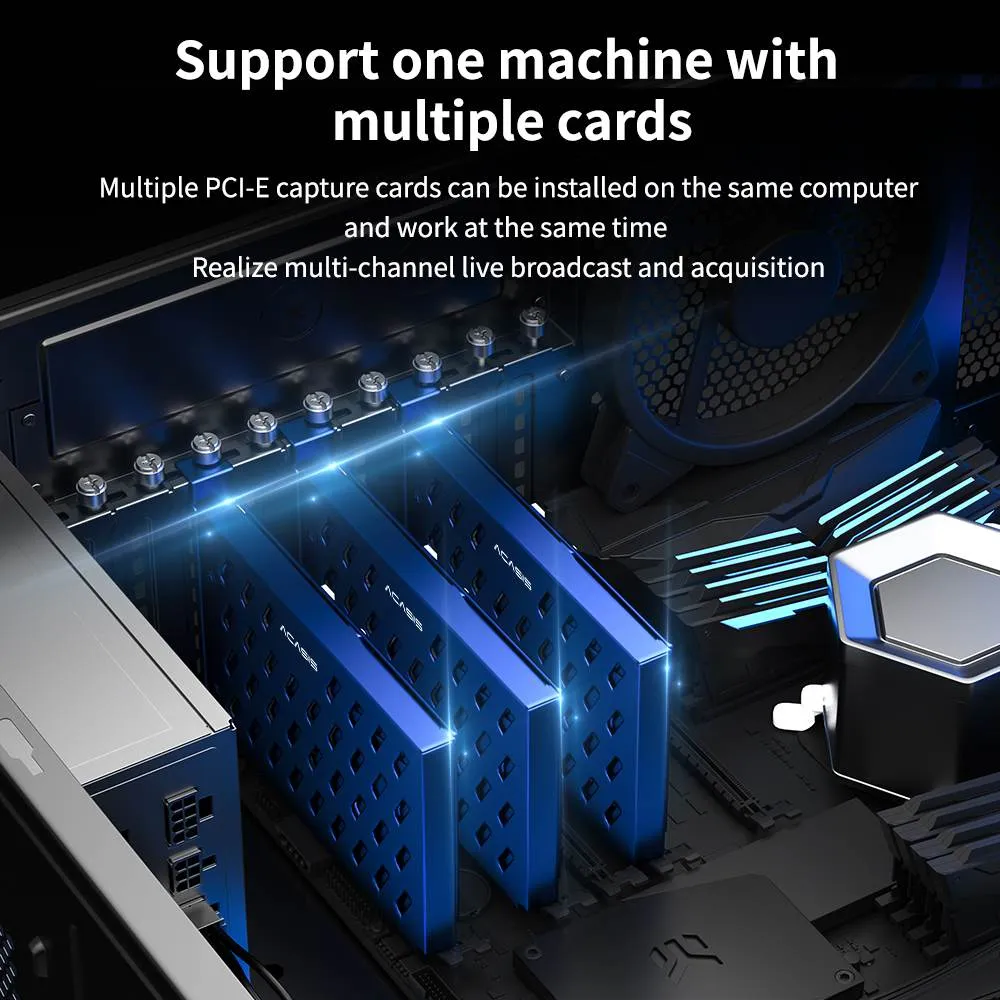

Support one machine with multiple cards and dynamically set the channel number to achieve multi-channel live broadcast and capture functionality.

Supports PCIex4, x8 or x16 PCIe slots, suitable for various gaming computer configurations, providing users with broader system integration options. Users can enjoy a smooth live gaming experience without the compression-related delays.

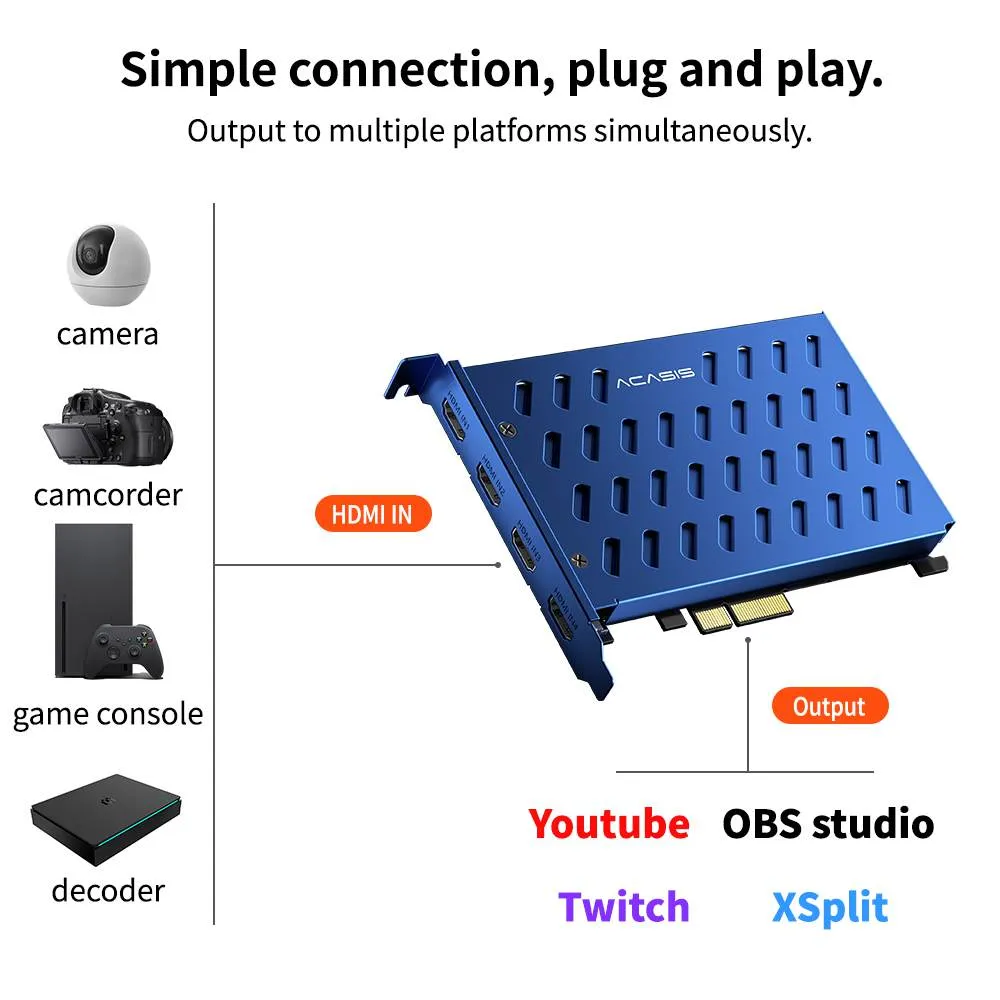

Use Any App, Stream to any Platform: OBS, Streamlabs, Vmix, Zoom, Microsoft Teams, Stream to YouTube, Twitch, Facebook Gaming and more.

With its powerful hardware performance and wide compatibility, whether it's PS5, Xbox, or other devices, it can efficiently integrate and work seamlessly, making it an ideal choice for your gaming streaming and recording needs.

Parameter

Dimensions: 145*120*20 (mm)
Host interface: PCI-Express x4
Input interface: 4 HDMI interfaces
Video input: 1920*1080P@60Hz
Video storage: 1920*1080P@60Hz
Image raw data format: YUY2
Video format: H.264 Main Profile (Hardware Compression)
Video resolution:
1920*1080P@60/50fps
1920*1080P@30/25/24fps
1920*1080i@60/50fps
1280*720P@60/50fps
1024*768P@60fps
800*600P@60fps
640*480P@60fps
720*480P@60fps
720*576P@50fps

Description

1.Audio input interface: HDMI Embedded Audio
2.Audio sampling format: Stereo/16-Bit/48000Hz
3.Operating system support: X86 and X64 versions of the following operating systems are supported
4.Power consumption: =5W
5.Operating temperature range: -20~85 degrees
6.Storage temperature range: -40~100 degrees
7.Relative temperature range: 5%-90%
8.SDK: vc /.net/vb/v4l2

ACASIS 1080P60Hz 4-HDMI PCle video capture card supports 4 HDMI ports at the same time acquisition, long-term work transmission is stable and clear, fully compatible with mainstream applications, effective de-intercalation picture more detailed.

Acasis 4 HDMI PCIe Video Capture Card 1080P 60FPS with Built-in Fan
